About Athena

Amazon Athena is one of the remote sources that Coco Alemana supports natively. You can read data from existing tables, as well as save data to new tables entirely, without using the AWS Console. All of the actions within Coco Alemana also apply to Athena tables.

Setting up AWS Credentials

You’ll need access to your AWS credentials. Specifically the Access Key ID and Secret Key. You can generate these in the AWS Console.

These keys generally look like this:

1. Access Key ID: AKIAIOSFODNN7EXAMPLE
2. Secret Key: wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY

Your credentials should have all of the appropriate permissions to:

1. Query Amazon Athena
2. List S3 Buckets
3. Save data to the S3 Output Bucket location.

For a list of managed AWS policies you can apply to your user, please go here.

Note

We currently only support IAM user keys, and do not support AWS SSO or other types of authentication.

Your credentials are only stored on your device.

1. Open the External Accounts Window

To provide your credentials to Coco Alemana, open the External Accounts... pane, under the top-level Coco Alemana menu.

2. Add a new External Account

Press the “Add Account…” button, or the plus button on the bottom-left hand side of the window.

Select the “Amazon Web Services” option.

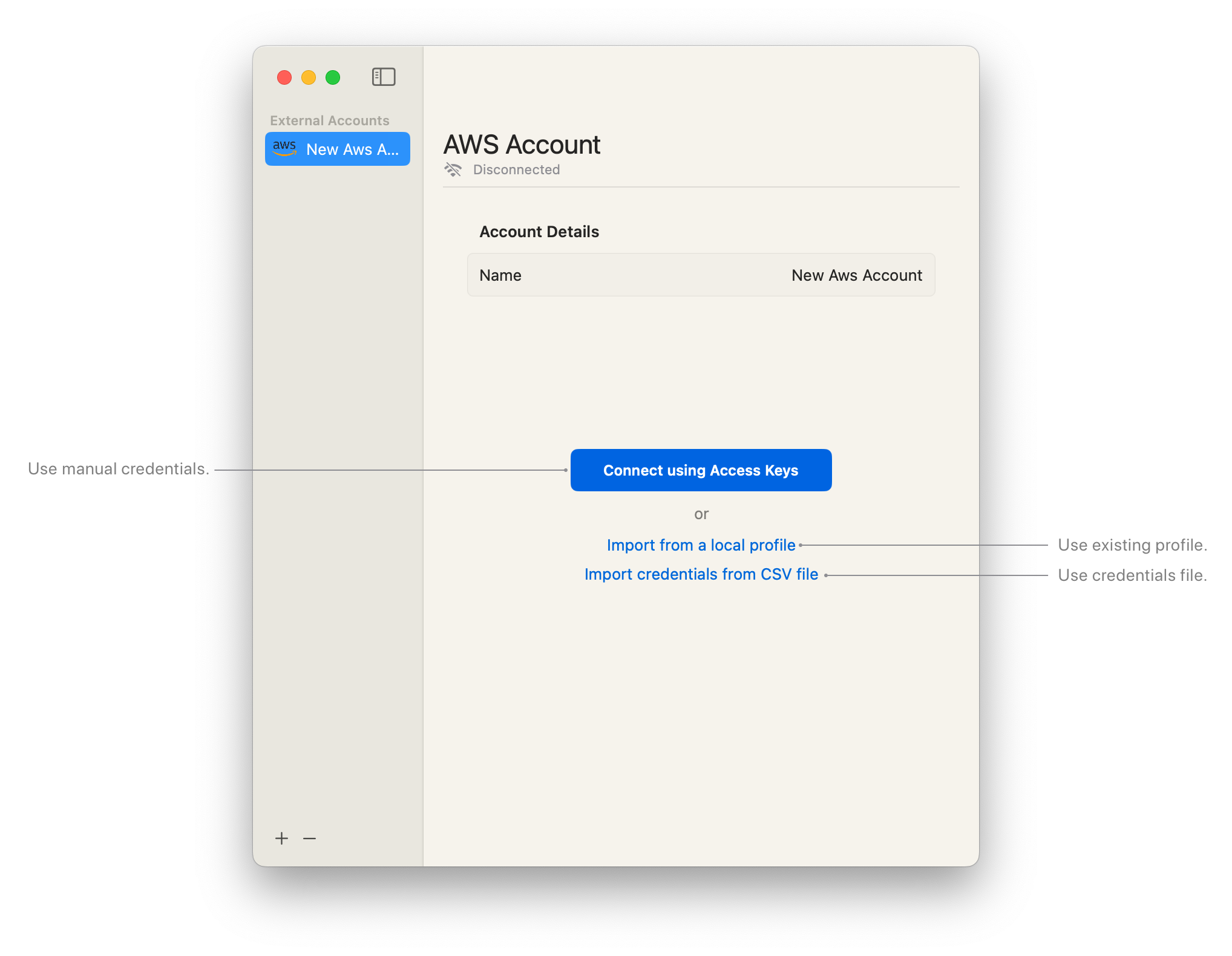

3. Connect Credentials

Provide your credentials through one of the many options available.

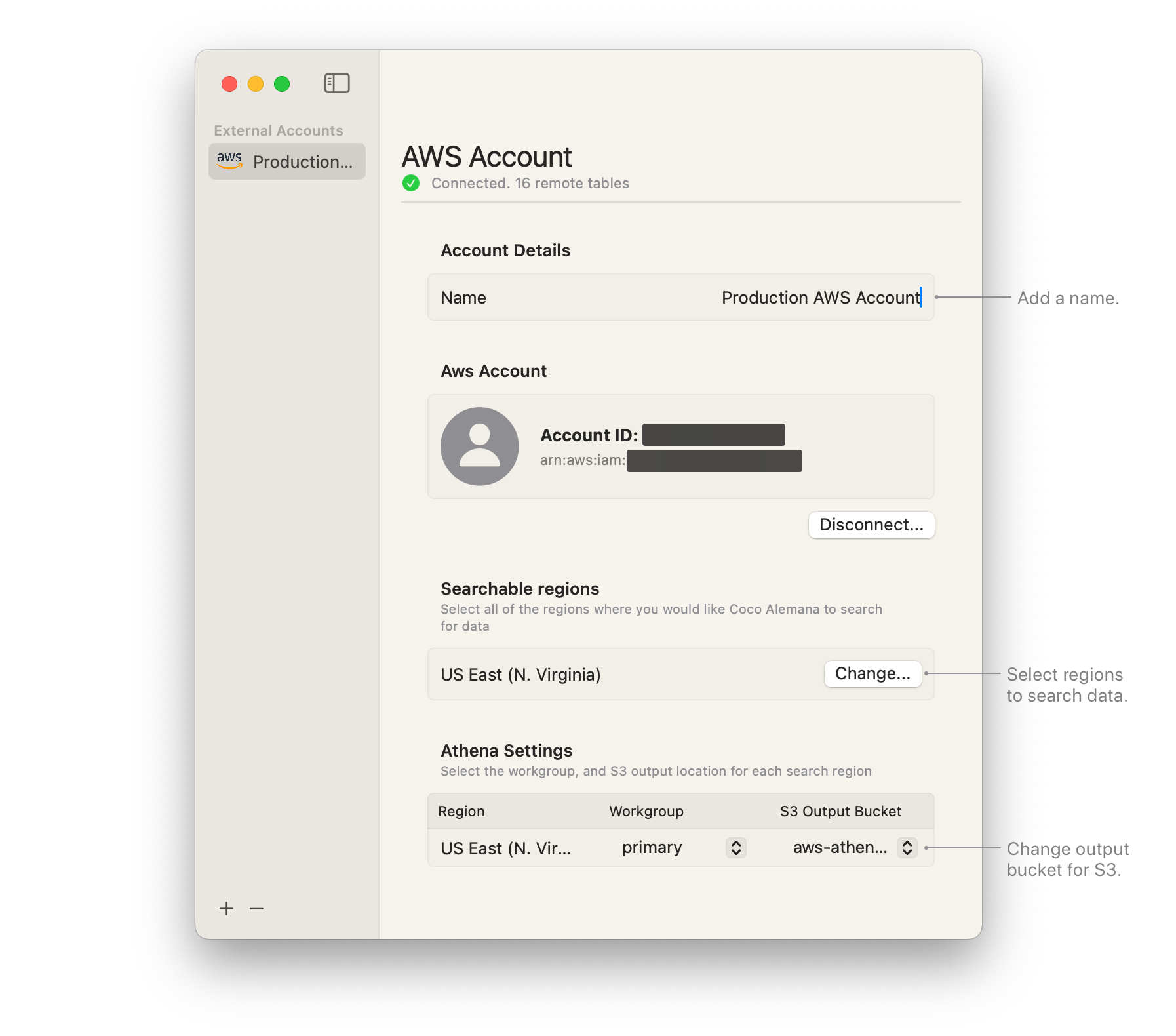

4. Adjust Settings

You’re able to change several settings such as the AWS Regions you want to search for data, and customize the workgroup and S3 output bucket that Athena will use to store results.

Load a Table from Athena

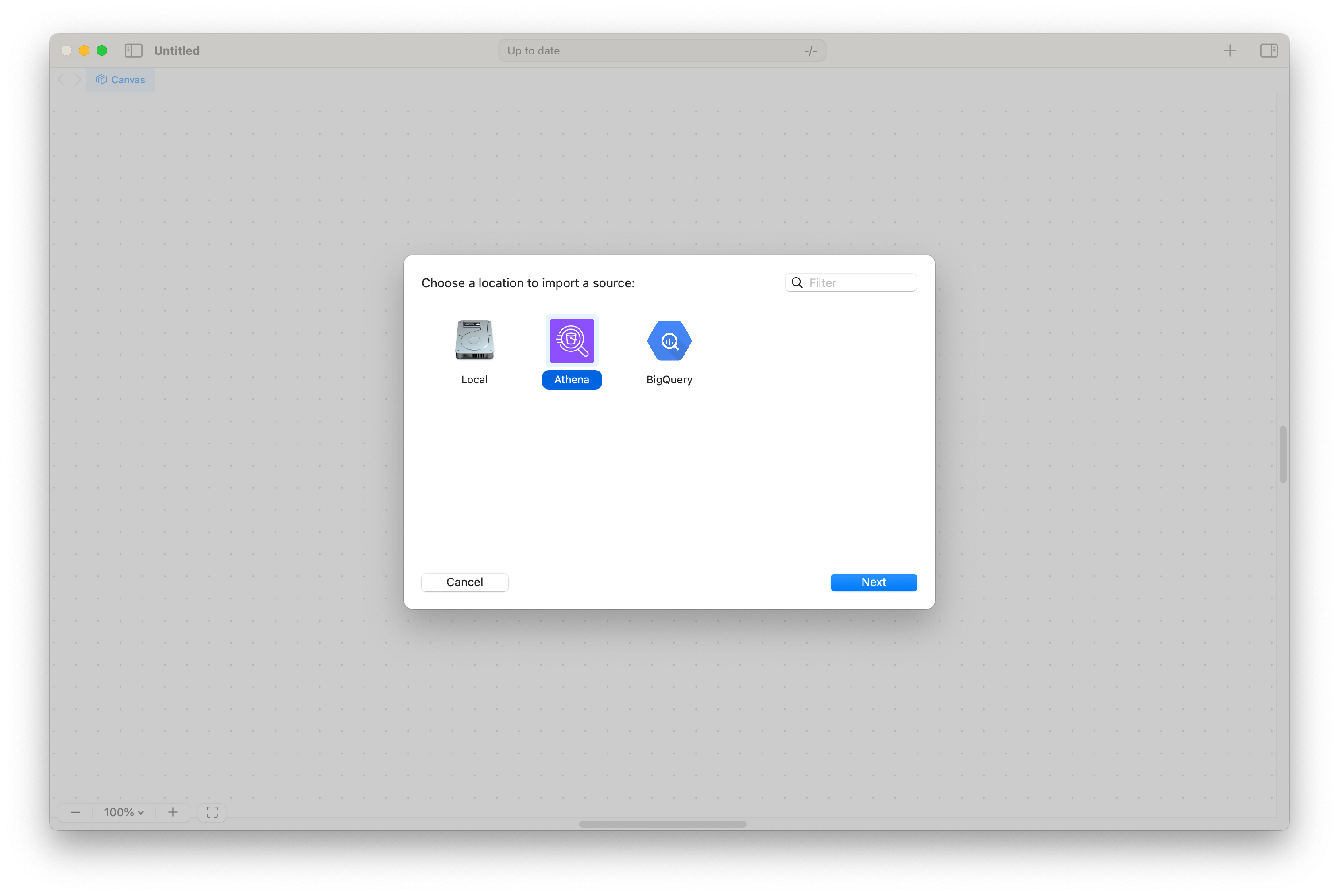

1. Open a new source

Once your credentials are configured, you’re able to load data from Athena. To start, you can create a new source via ⌘ N, and select “Athena”.

2. Select a Table

See your available databases and select a table you’d like to import. You can also search for a table in your database.

Modifying Athena Tables

You can modify Athena frames with the same actions as any other frame. The SQL used in Coco Alemana will translate into Athena (Trino) SQL on your behalf. This means you can work with a massive table without downloading it.

Exporting Data

You export data to Athena just like any other frame. You can also export an Athena frame to a local file. This process will take slightly longer, as it requires downloading everything onto your device.
